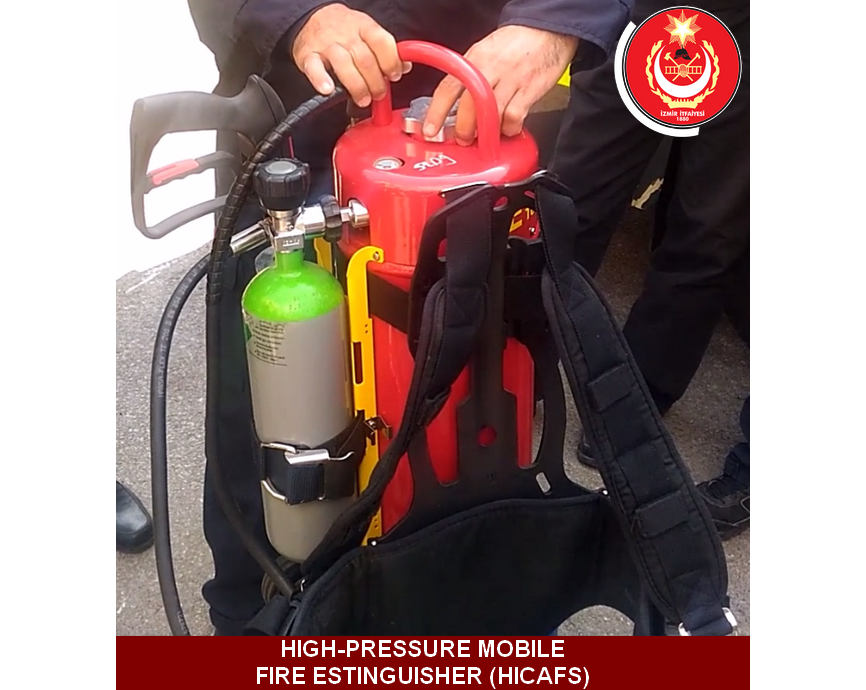

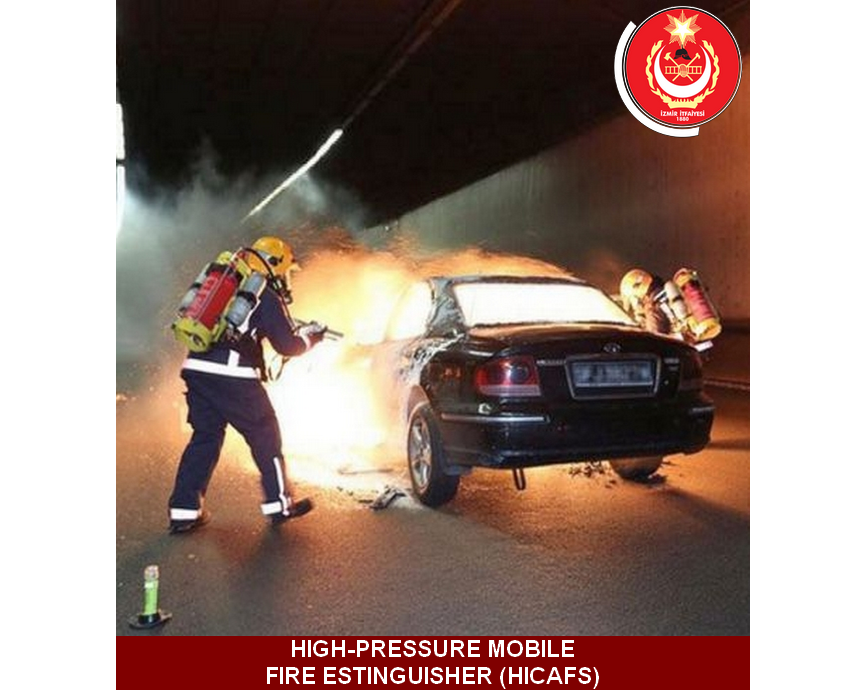

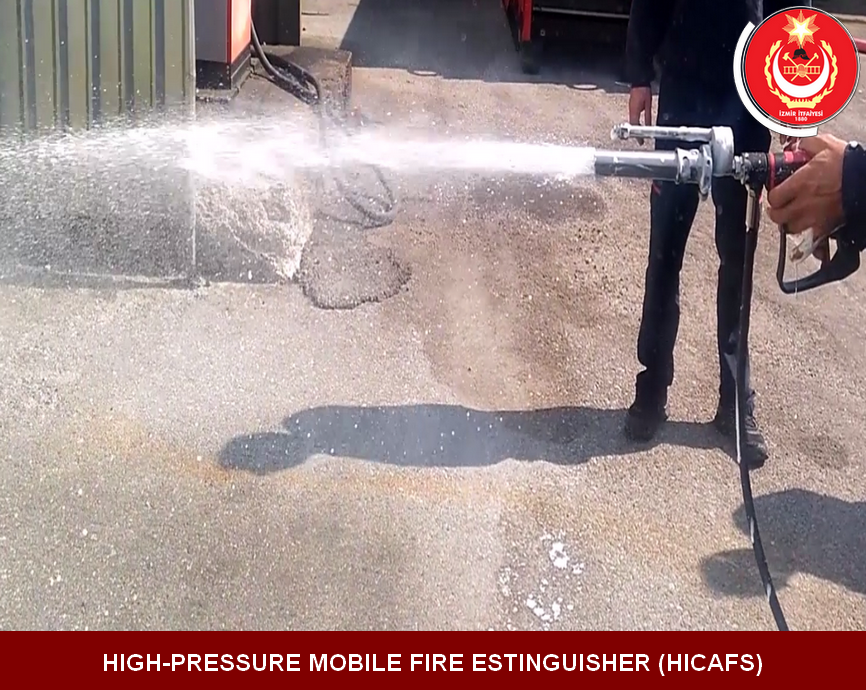

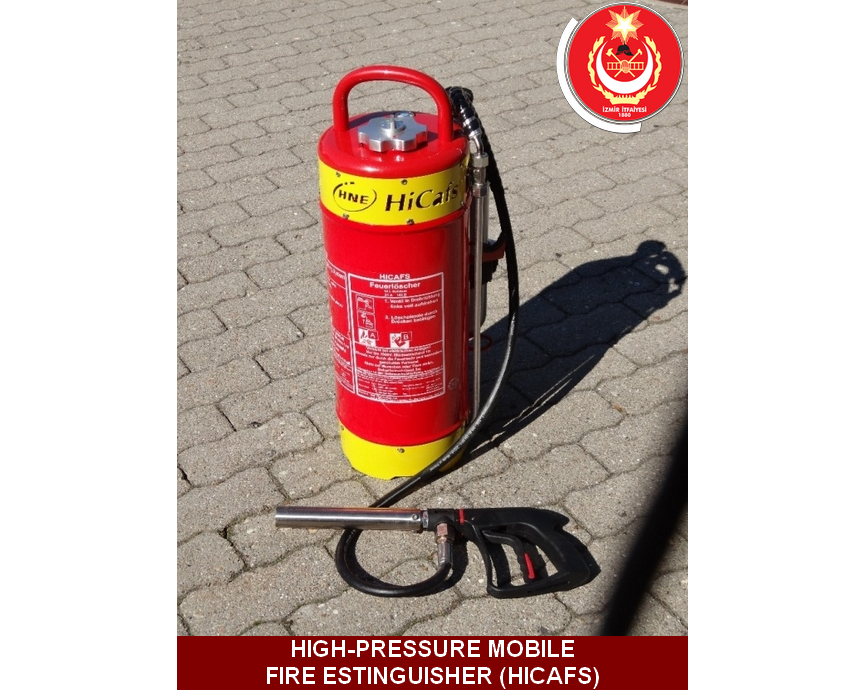

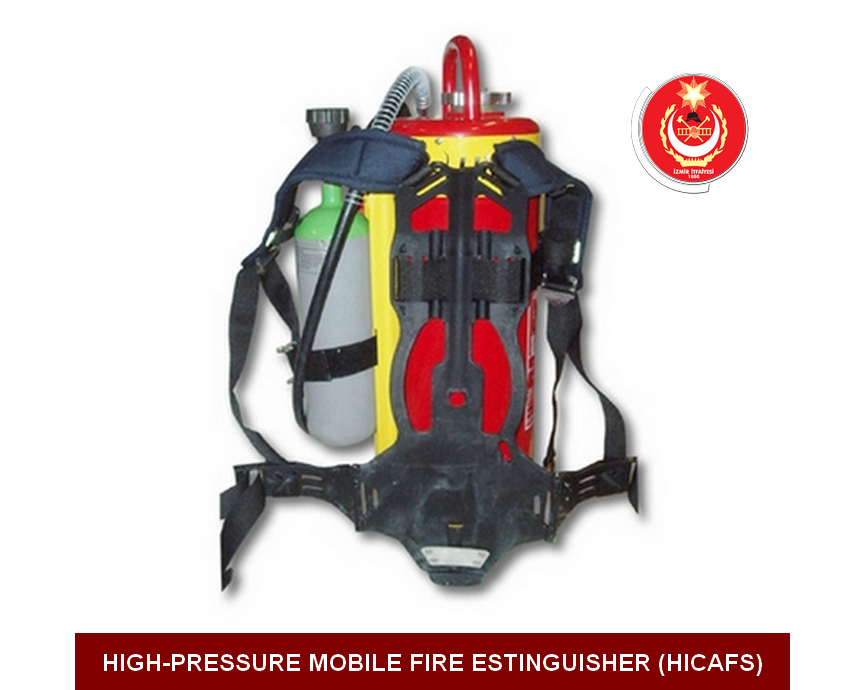

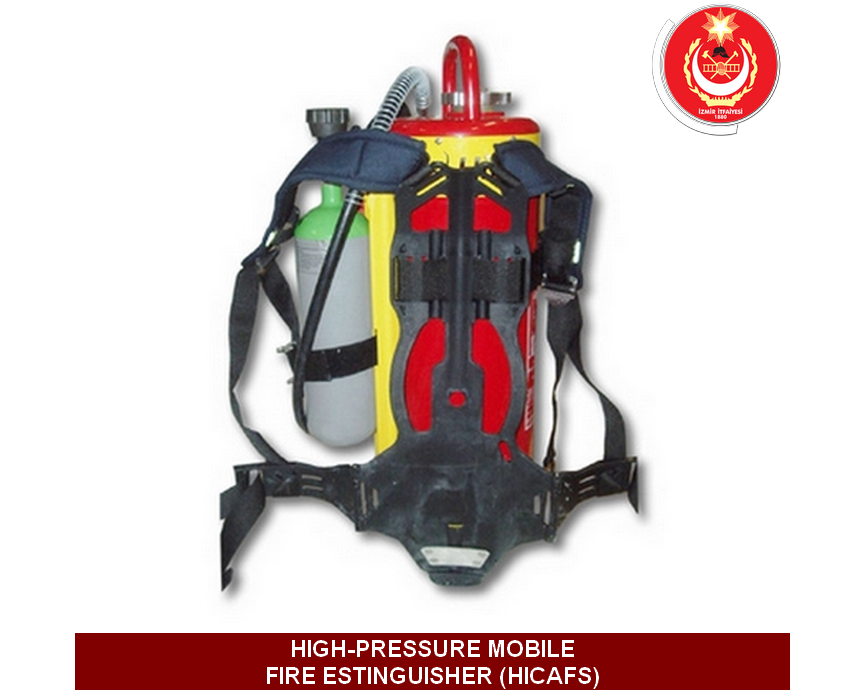

High-Pressure Mobile Fire Estinguisher (HICAFS)

HNE Technologie AG HiCAFS 02/010 is an extinguishing unit. Operating pressure, nozzle, lance and droplet size are accurately synchronized in such a way that the generated bundled droplet stream can hit the burning object exactly where needed and from a safe distance. With liquid extinguishing agents such as water, foam or viscous additives, rapid heat absorption is made possible, the burning object is shielded and quickly extinguished Hereby only a minimum quantity of extinguishing agent is used.

TECHNICAL SPECIFICATIONS:

For 21A-183B Fire Types

Capacity: 10 Lt.

Propellant Gas (Nitrogen): 2 Lt / 300 Bar

Operation Pressure: 34 bar (Max.)

Flow Rate: 30 lt / min

Usage Time: 25 sec (Jet) - 60 sec (spray)

Spray Distance: 16 m (jet) - 6 m (spray)

1000V, 50Hz. Insulated against electric current, min. 1 meter

Weight (Empty / Full): Approx. 14/24 Kg

INGREDIENTS:

-Compressed Air Storage

-Fire Estinguishing Pistol

-Pressure Hose (1.5 m)

-2 lt / 200 Bar Air Tube

-Pressure reducer

-Carrying Handle

-Carrying Wheel

-Pistol Protection
