Fan and High-Performance Foam Generator

Fan and High-Performance Foam Generator

Designed for fire response and ventilation. Yangına müdahale ve havalandırma uygulamaları için tasarlanmıştır. Can be used as foam generator, fan and smoke/gas evacuator. Has galvanized and enamelled steel body.

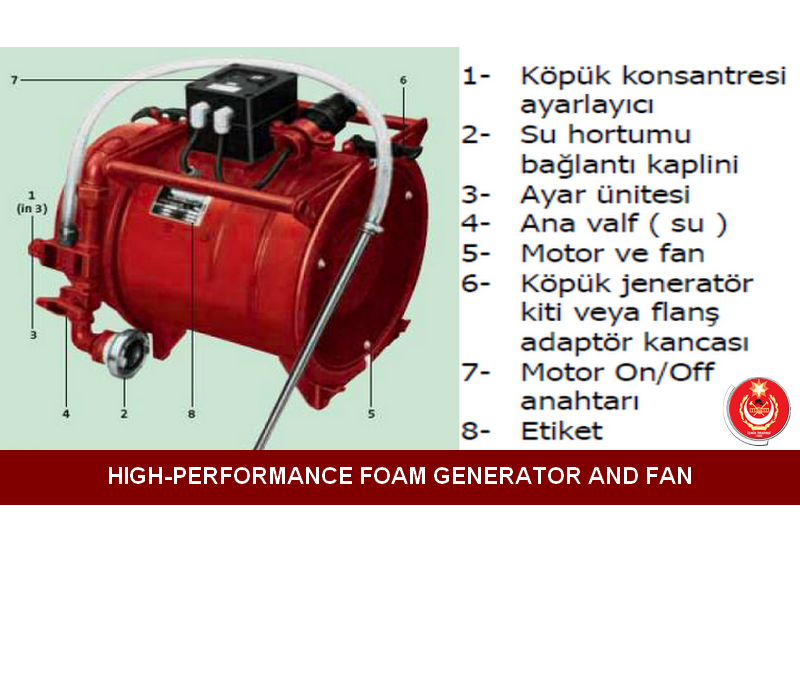

Parts:

  • 1 foam generator (concentrate sieve, regulator and C type adapter)

  • 2 Spiral tube ( 5 meter + 5 meter )

  • 1 piece plastic hose ( 5 mt )

  • 2 pieces plastic clamp

  • 1 flange adapter



Technical Specifications:



FAN

Electric engine: 2.6 kW, 380 V, 50Hz (Triphase engine)

Ex-proof (Electrical products used in Explosive and Hazardous Areas, Protected Against Explosion)

Temp. Class : T1-T3 ( <200°C )

RPM : 2800 devir/dk

Performance : 10.000 m3/saat

Dimensions : 400x465x587 mm (LxWxH)

Weight: 52 kg



FOAM GENERATOR



Fire Hose Connection : C type adapter

Water pressure : About 4 – 8 bar

Water consumption: approx. 100 lt / min

Concentrate consumption: approx. 2 lt / min

Foam way out : approx. 50 m3 / min

Foam expansion ratio: approx. 1: 500 (adjustable)
