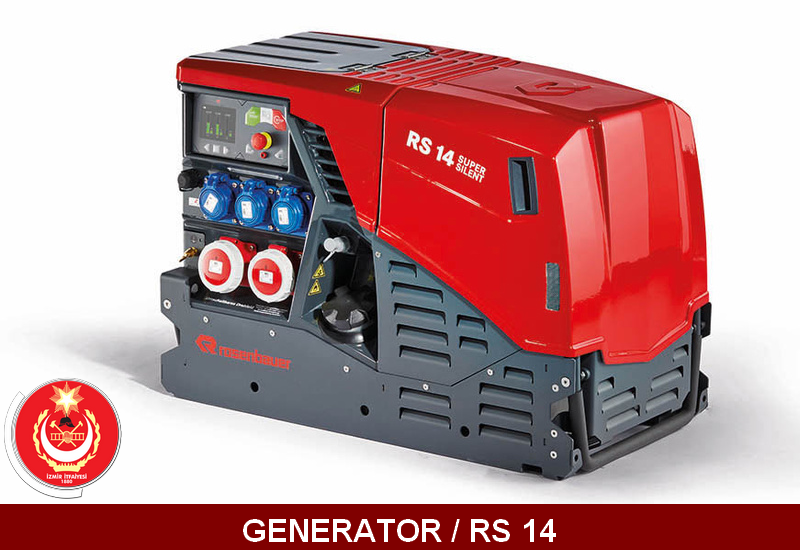

RS 14
-It has low noise and high-quality stainless steel exhaust system for lifetime operation,
-Powerful synchronous generator for high starting current,
-Automatic tucking for the best start in any condition,
-Impact resistant, glass fiber reinforced body,
-Powerful and low maintenance needed battery,
-Easily accessible circuit breakers,
-Manual start device,
Digital control screen,
If the battery or electronics system is faulty, it is equipped with an emergency start-up switch.
Can be carried easily and quickly by a single person,
-RLS1000 ve RLS2000 lighting systems: day and night
-Pole change switch for “400 V CEE” slot
-The exhaust gas deflector for upward evacuation,
-Battery temperature control,
-Starter battery 12 V / 18 Ah
-Magcode charging cradle,
-CITY three-phase socket, 400 V CEE

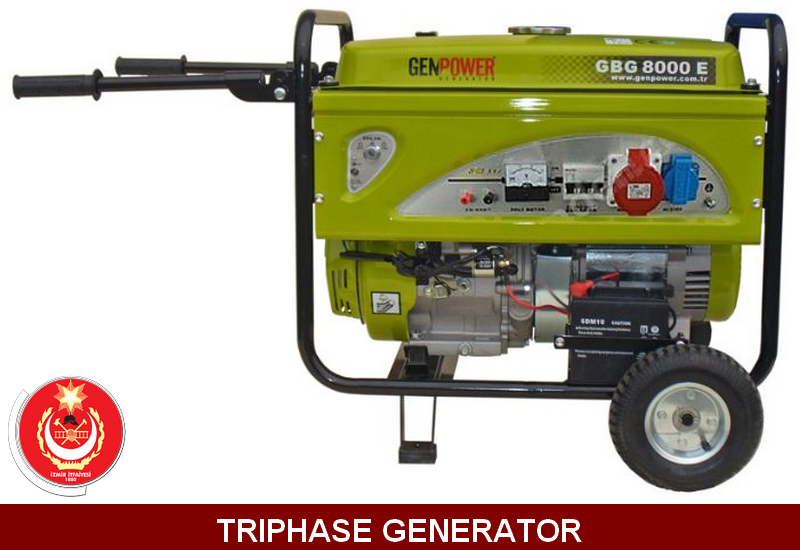

GENPOWER GBG 8000TE 8 kVA TRIPHASE GENERATOR
TECHNICAL SPECIFICATIONS
Max. Operating Power (kVA) : 8
Constant Operating Power (kVA) : 7
Constant Output Current (A) : 29
DC Output : 12 V - 8,3 A
Voltage (Volt) : 230/400
Frequency (Hz) : 50
AC ( Cos Q ) : 1
ENGINE
Model : 190 FD
Type : Air Cooled
4 Timed
OHV 25°
Single Cylinder
Cylinder gauge (cm3) : 420
Max. Output Power HP- 3600 d/dk. : 15
Fuel Tank Capacity (Lt) : 25
Fuel Consumption (gr/Kw-saat) : 374
Operation mode : with starter
Contstant Operating Time (hour) : 6
Oil capacity (Lt) : 1.1
Noise Level {Db(A) @ 7 mt.} : 74
Dimensions LxWxH (mm) : 680 x 510 x 540
Empty Weight (Kg) : 90
STANDARD SPECIFICATIONS
ENGINE
Rpm : 3000 d/dk
Air Cooled
Electronic ignition
Quiet exhaust system
Operation option: Rope / starter
ALTERNATOR
With automatic voltage regulator
Phase count: Single phase
Warning system: self-excited
Power factor (Ø): 1
Insulation system: H
Voltage: Monophase 230 VAC
Frequency: 50 Hz
Voltage regulation: + 5%
Revolution: 3000 rpm
CHASSIS
Motor and alternator direct coupling
Steel pipe
Generator to chassis vibration wedges
Fuel indicator with dial
CABINET
The optional cabin can be applied. (Protection / Sound insulation)
Against external factors, Electrostatic powder painted
For safety and against external factors, Protected exhaust system
Insulated exhaust system
STANDARD CONTROL PANEL
Voltmeter VAC 1 unit
Thermal circuit breaker, 1 pc
Covered, grounded socket, 1-3 pieces
