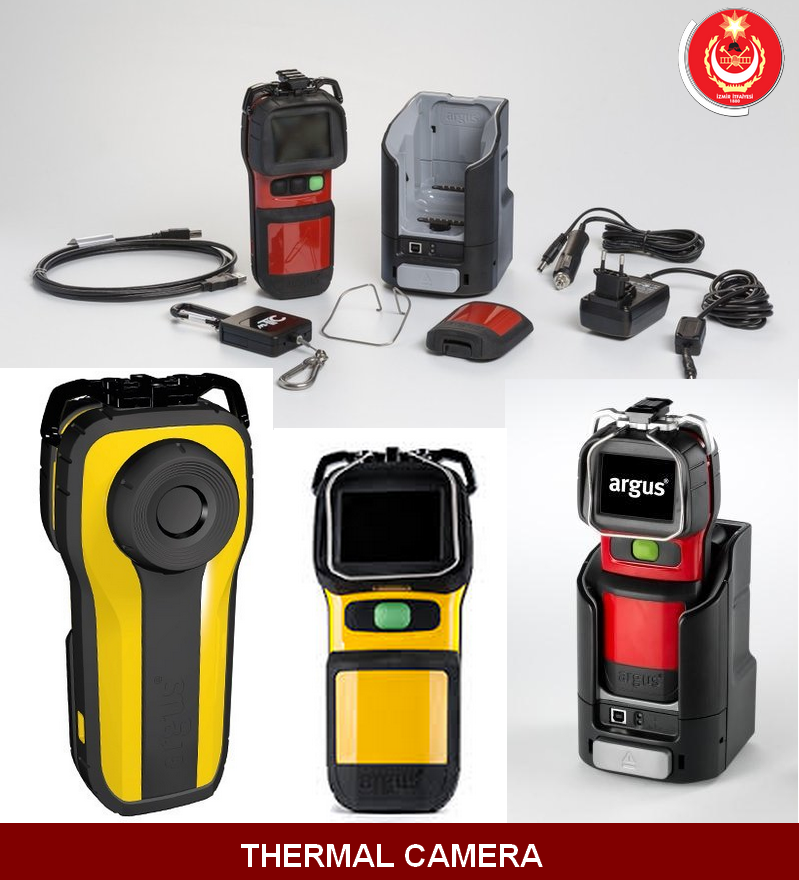

Thermal Camera

Thermal Camera

It is a thermal viewer that can be kept in the palm easily and comfortably.
The world's smallest thermal viewing camera with high resolution.
Provides excellent clarity with dynamic ranges up to 760ºC
This camera that is an ideal device for an survivor search can be used to look for too low temperature objects.

STANDARD SPECIFICATIONS:

*Direct Temperature Measurement (DTM)
*Three Mode Sensitivity
*Customizable startup screen
*Application-specific, specific color modes
   • Fire Mode
   • Switching between General Maintenance / Search Mode
*Digital Zoom

MECHANICAL DATA

Sizes of Camera (H x W x D): 203mm x 96mm x 71mm
Weight of Camera: 580g (21 oz) (without battery)
                                755g (27 oz) (with standard battery)
                                835g (30 oz) (with high capacity battery)
Sizes of Battery (H x W x D): 88mm x 76mm x 27mm (standard battery)
                                                 88mm x 76mm x 35mm (high capacity battery)
Weight of Battery: 175g (6oz) (standard battery)
                                255g (9oz) ( high capacity battery )
Sizes of Charger (H x W x D) : 167mm x 112mm x 120mm
Weight of Charger: 550g (19 oz)
Main Camera Body: Radel®R-5100 ve Santoprene®
LCD Glass: Ultrason® E 2010 HC
LCD Protector: Santoprene®
GE Glass Bracelet: Radel®R-5100 ve Santoprene®

Lens Glass: Durable coated germanium (2mm thickness)


OPTICAL DATA

Sensor
Sensor Type: Uncooled Microbolometer
Sensor materials: Amorphous Silicone (Asi)
Resolution: 384 x 288px
Pixel size : 25μ
Spectral response : 8 – 14μm
MDTD (Sensitivity of Full Camera System): 70 mK (0,07 ºC) typical (Minimum Recognizable Temperature Difference)
NETD (Sensor Sensitivity): <50 mK nominal
Dynamic range: -40°C to 1100°C (-40ºF to 2000°F)
Refresh rate : 60 Hz
Direct Temperature Measurement (DTM): -40°C to 1.100°C (-40°F to 2000°F)

Lens
Lens material: Germanium Composite
Focus Length: 1m to infinity. Optimized at 4 meters (3 ft to infinity, Optimized at 13 feet)
Aperture Clearance: f/1.0
Field of view : 50 ° horizontal, 37.5 ° vertical

Screen
Type: High quality, industrial, color TFT active matrix LCD
Size: 69 mm (2,7 inches)
Pixel format: QVGA 320 x 240, (each pixel RGB format, total 230,400 pixels)
Video input: Sensor synchronized, direct digital drive
Backlight: 400cd/m2

ENVIRONMENTAL DAT
Thermal conditions: This camera is designed to work under the following conditions:

• Uninterrupted between -20ºC (-4ºF) and +85ºC (185ºF) OR

• 15 minutes at 150ºC (300ºF)

• 7 minutes at 260ºC (500ºF)
Imperviousness : IP67, water resistant to short-time immersion
Impact: This camera is durable against concrete falling from a height of 2 meters (78 inches)
Storage: For maximum effective lifetime, it is recommended to keep the storage temperature between -20 ° C and + 40 ° C (-4 ° F to 104 ° F).

ELECTRICAL INFO
Power consumption: <3 W typical
Start-up time: 5 seconds typical
Battery Type: Lithium Iron Phosphate, Rechargeable Battery
Battery capasity: 1100 mAh, 6,6V (standard battery); 2500mAh, 6,6V (high capacity battery)
Standard Battery Life: More than 2 hours at ambient temperature (22ºC, 72ºF)
Standard Battery Charge Time: Less than 2 hours
Battery Life of High Capacity Battery: More than 5 hours at ambient temperature (22ºC, 72ºF)
Charge Time of High Capacity Battery: Less than 4,5 hours
Battery charge cycle: More than 1000
Imperviousness: IP67
Battery charging temperature: 5°C to 40°C (41°F to 104°F)
Charger input voltage: 11V - 30V DC (12V and 24V vehicle systems)
Charger operating temperature: 0ºC to 40ºC (32ºF to 104ºF)
