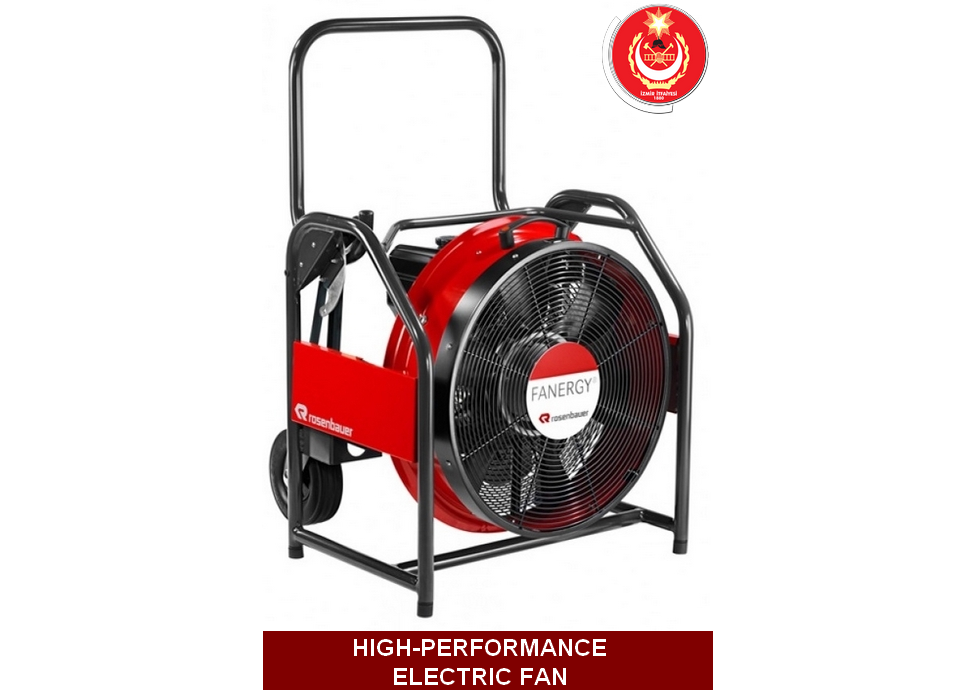

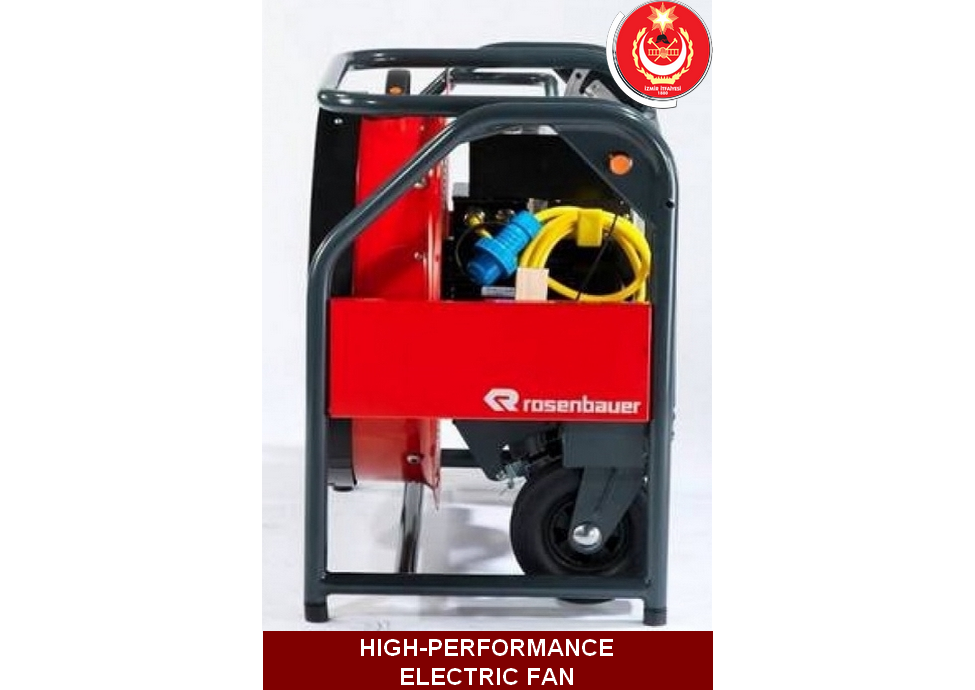

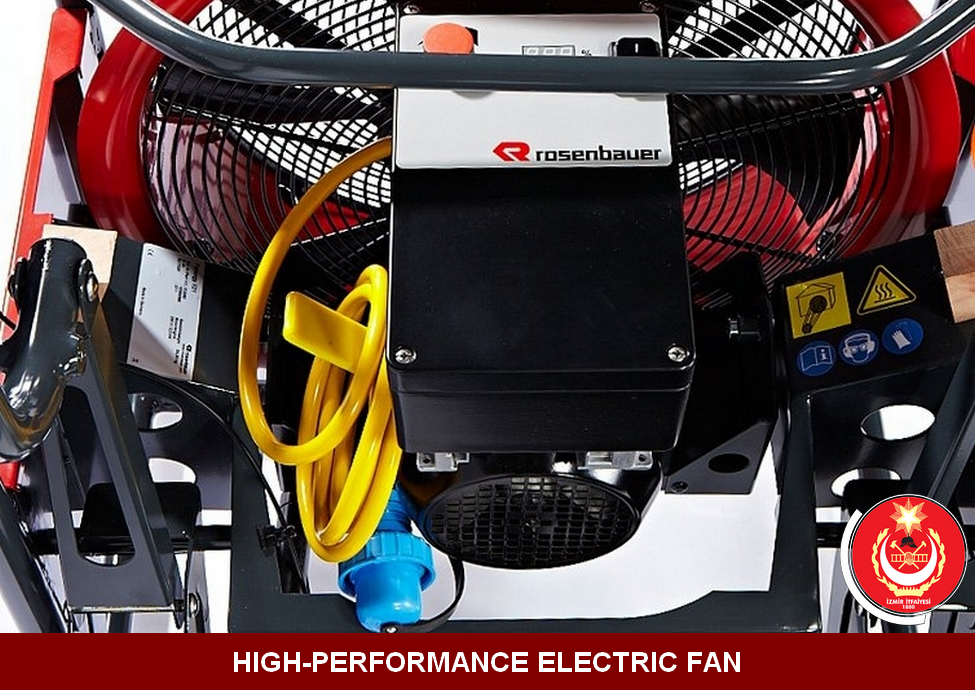

High-performance Electric Fan

High-performance Electric Fan

Designed for demanding conditions and provides a high level of ventilation with a large setting range (-20 ° 7 °).

*Strong airflow of it provides smoke evacuation rapidly
*Rapid development of visibility
*Decrease of temperature rapidly
*Strong airflow
*Equipped with solid aluminum frame, retractable wheels, integrated water spray (optional)
*Low noise

FANERGY can be used with an electric motor (generator).
There are two different size devices with 16' and 21' diameter

Technical Specifications of 16' Device

Engine: Briggs & Stratton 1 cylinder. Vanguard 4.8 kW veya Honda 1 cylinder. GX200 4,8 kW
D
iameter range: 16' / 400 mm
Single speed: 23,900 m³ / h
Composite flow:> 50,000 m³ / h
Sizes (L x H x W): 560 x 635 x 482 mm
Weight: 42 kg
Capacity of Fuel Tank: petrol - 3 liters
Running time with a full tank: 110 minutes

Technical Specifications of 21' Device

Engine: Briggs & Stratton 1 cylinder. Vanguard 4.8 kW veya Honda 1 cylinder. GX200 4,8 kW
Diameter range: 21' / 530 mm
Single speed: 36,100 m³ / h
Composite flow: > 65.000 m³ / h
Sizes (L x H x W): 695 x 711 x 482 mm
Weight: 52 kg
Capacity of Fuel Tank: petrol - 3 liters

Running time with a full tank: 110 minutes
