Transceivers

Transceivers

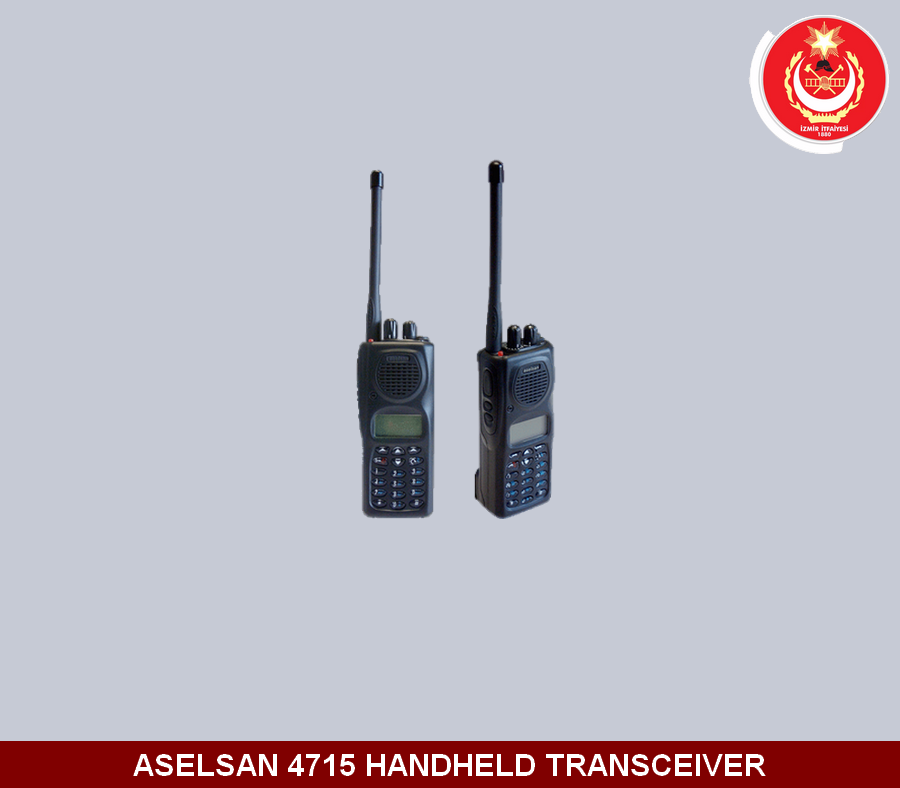

Aselsan 4715 UHF DMR Handheld Transceiver

General Specifications:

-Analog and digital mode
-Suitable to DMR standards
-User notifications and warnings
-LCD Screen
-Alphanumeric Keypad
-Graphical User Interface
-Call Registration
-Talking ID
-3-Level RF Power Level
-Channel Search
-VOX
-Sending Time Limit
-Menu authorization
-Computer Aided Repair
-Suitable to MIL-STD-810C/D/E/F/G standards
-Suitable to ETSI 300-086 (Analog), ETSI 300-113 (digital:DMR) standards
-Backward compatibility in analogue mode

Specifications of Digital Mode:

-Group Call
-Personal Call
-Emergency Call
-SMS
-Data communication
-Status Messages
-Crypto (Optional)
-Call Alert

General Technical Specifications

Modulation : Analog FM, 4FSK (DMR)
Channel Interval : 12,5 / 25 kHz (Analog) 12,5 kHz (DMR)
Data speed (Digital) : 1,8 kb/s
Audio Encoder : AMBE++
Crypto Algorithms: AES
Number of Channels: 256
Working Voltage : 7,5 Vdc ± % 20
Screen : 64 x 128 pixel LCD
Keypad : 18 keys (illuminated)
Dimensions (without battery) (HxWxL): 130 x 58,5 x 17 mm (except for overhangs)
Weight (except Antenna and Battery) : 210 g
Operating Temperature : -30ºC / +60ºC
Storage Temperature: -40ºC / +85ºC
Moisture : % 95@ 50ºC

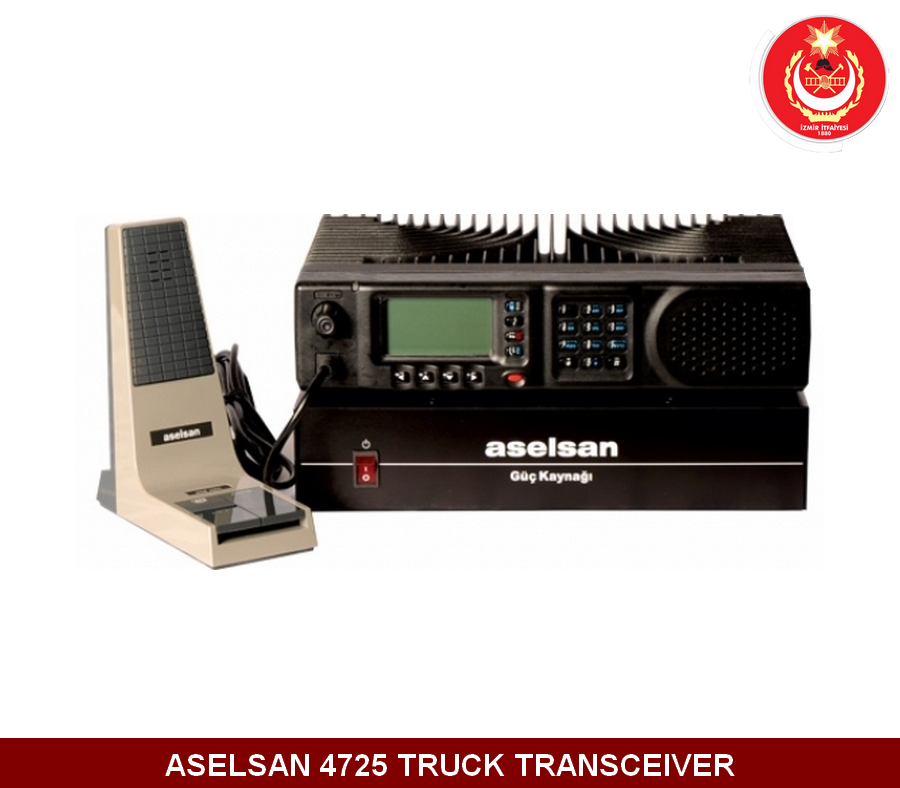

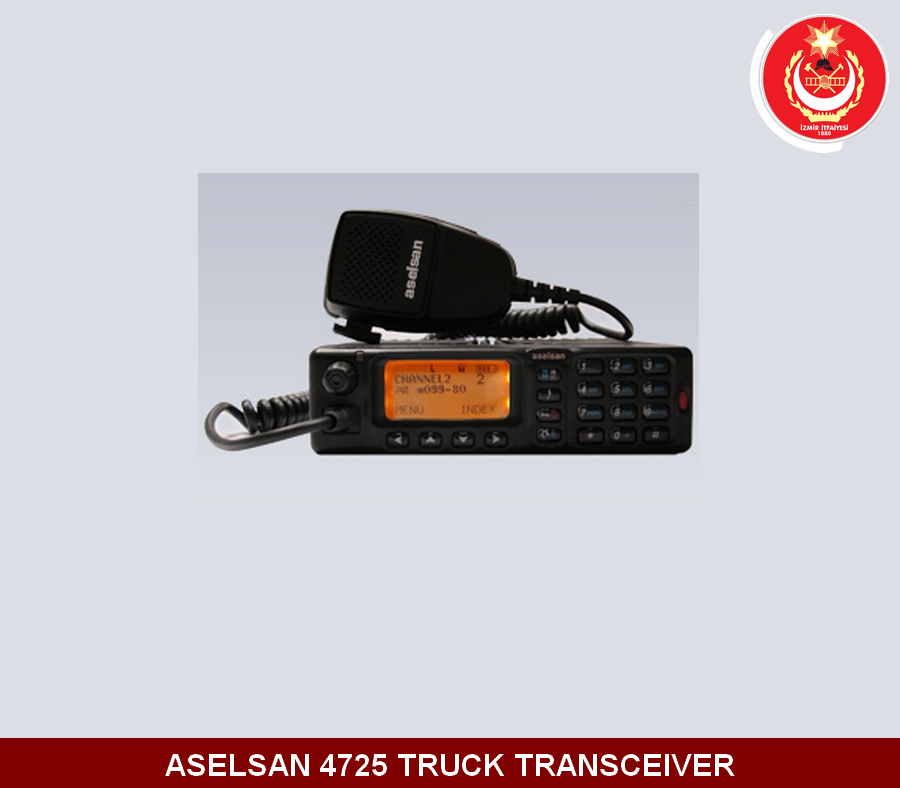

Aselsan 4725 UHF DMR Truck Transceiver

It is also used as a stable transceiver in fire stations


General Specifications:

-Analog and digital mode
-Suitable to DMR standards
-User notifications and warnings
-LCD Screen
-Alphanumeric Keypad
-Graphical User Interface
-Call Registration
-Talking ID
-3-Level RF Power Level
-Sending Time Limit
-Menu authorization
-Computer Aided Repair
-Suitable to MIL-STD-810C/D/E/F/G standards
-Suitable to ETSI 300-086 (Analog), ETSI 300-113 (digital:DMR) standards
-Show and send location via external GPS

Specifications of Digital Mode:

-Group Call
-Personal Call
-Emergency Call
-SMS
-Data communication
-Status Messages
-Crypto (Optional)
-Call Alert

General Technical Specifications

Modulation : Analog FM, 4FSK (DMR)
Channel Interval : 12,5 / 25 kHz (Analog) 12,5 kHz (DMR)
Data speed (Digital): 1,8 kb/s
Audio Encoder : AMBE++
Crypto Algorithms: AES
Number of Channels: 256
Working Voltage : 13,6 Vdc ± % 20
Screen : 64 x 128 pixel LCD
Keypad : 20 keys (illuminated)
Dimensions (without battery) (HxWxL): 46 x 165 x 165 mm (except for overhangs)
Weight (except Antenna and Battery) : 1,5 kg
Operating Temperature : -30ºC / +60ºC
Storage Temperature: -40ºC / +85ºC
Moisture : % 95@ 50ºC
